Introduction
Tunnel Construction Techniques have evolved tremendously over the past century, revolutionizing the way we connect cities, travel underground, and transport essential utilities. From ancient hand-dug pathways to high-tech, computer-monitored tunnel boring machines (TBMs), the art and science of tunnel engineering has become a key part of modern infrastructure.
Whether for roadways, rail systems, subways, water systems, or mining projects, the importance of tunnel construction continues to grow. In this article, we’ll explore the top tunnel construction techniques used today, highlight their applications, and examine why the right technique can make or break a project.
Why Tunnel Construction Matters
Before diving into the techniques themselves, it’s essential to understand why tunnel construction is vital in today’s world:
- Urban Expansion: Tunnels allow for efficient transport beneath crowded cities without disturbing the surface.
- Geographical Challenges: In mountainous or water-crossed areas, tunneling becomes the only feasible option.
- Environmental Preservation: Underground solutions reduce disruption to ecosystems on the surface.
- Energy and Utility Transport: Pipelines and cables are increasingly being placed underground to enhance safety and efficiency.

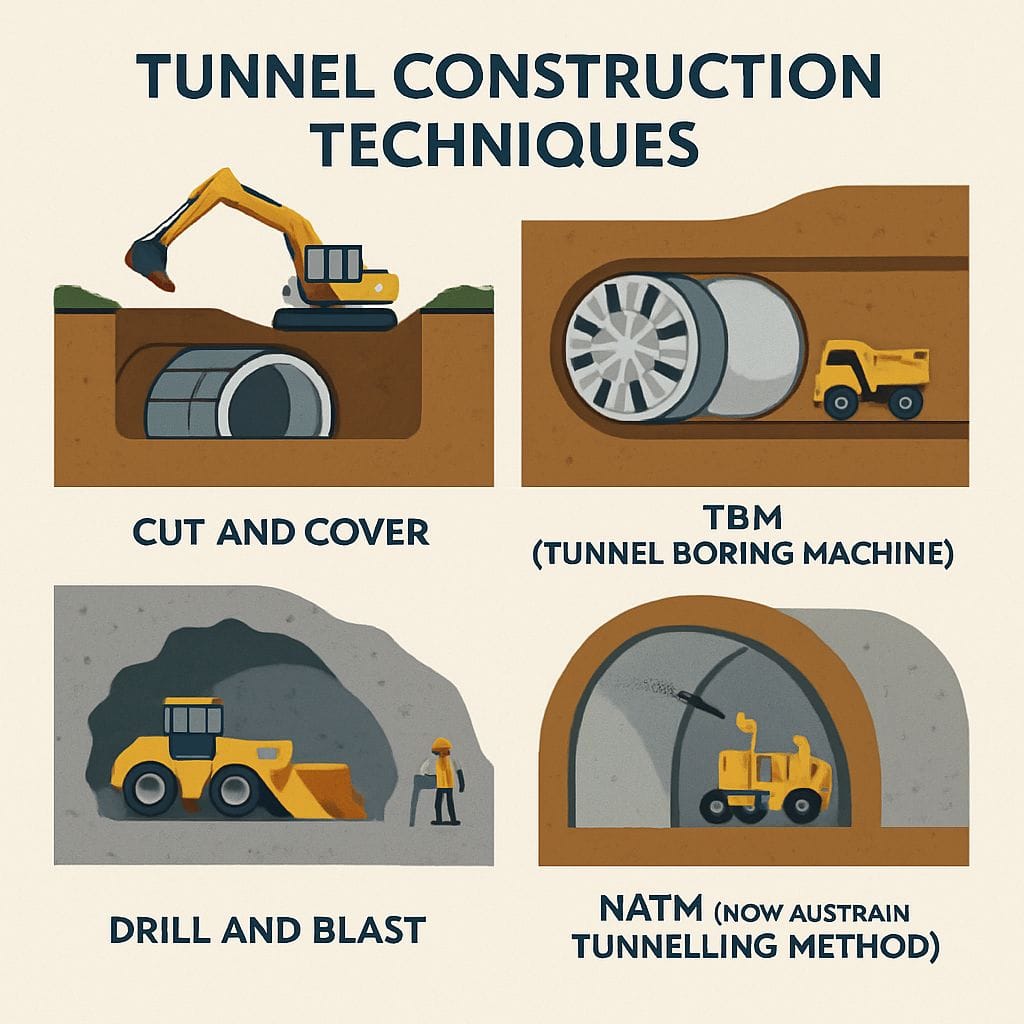

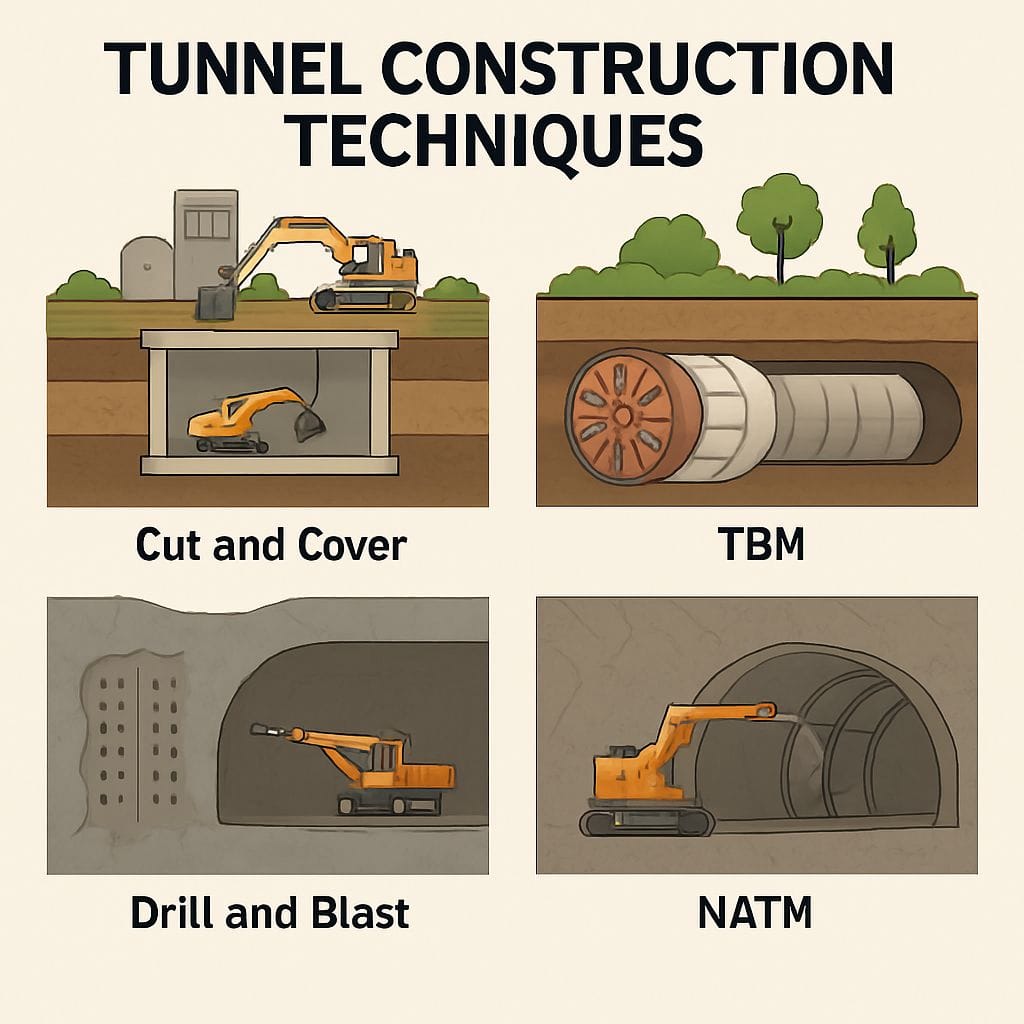

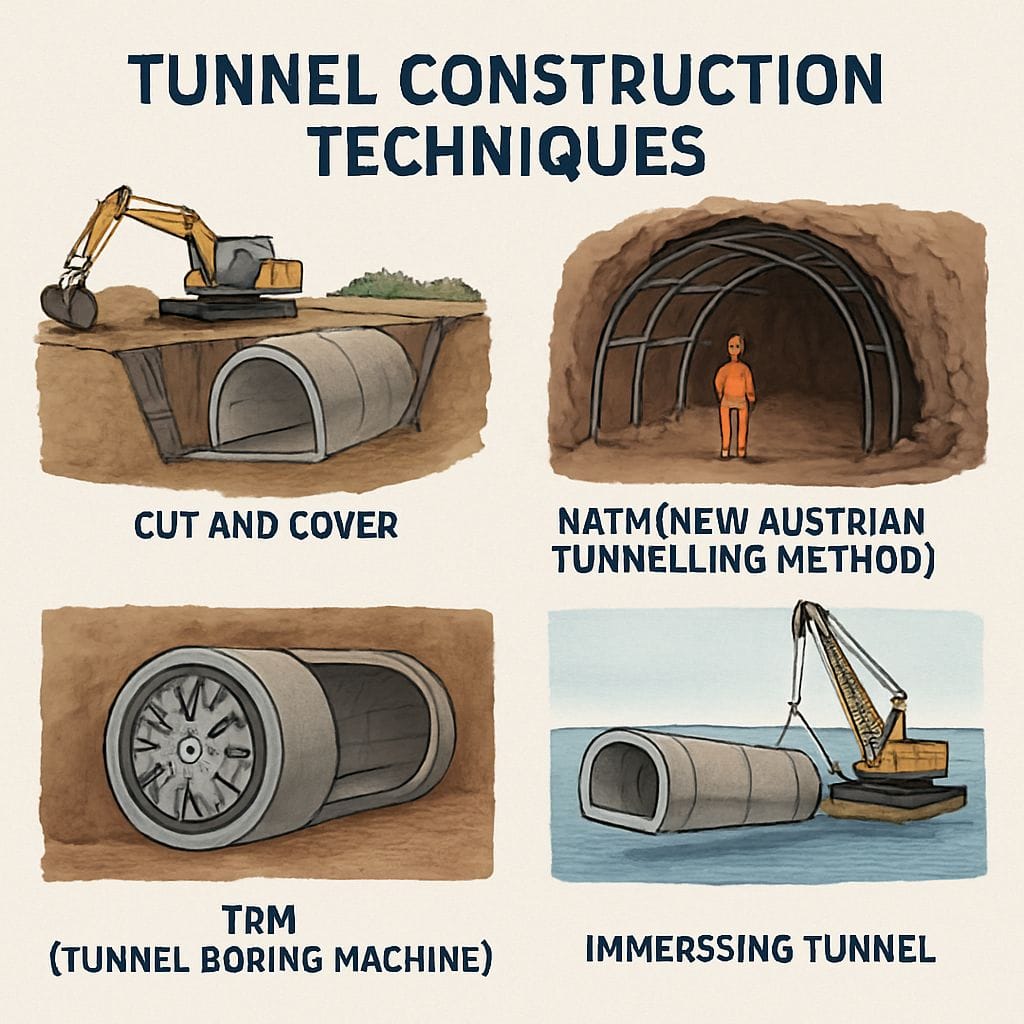

1. Cut and Cover Method
Overview: One of the oldest and simplest tunnel construction techniques, the cut and cover method involves excavating a trench, constructing the tunnel inside it, and then covering it back up.
Best For: Shallow tunnels such as subways, underpasses, and small water drainage systems.
Advantages:
- Low-cost construction
- Quick and straightforward in non-urban areas
Limitations:
- Significant surface disruption
- Not ideal for deep tunnels
Modern Use: Many metro systems, including parts of the London Underground and New York Subway, began with cut and cover methods.

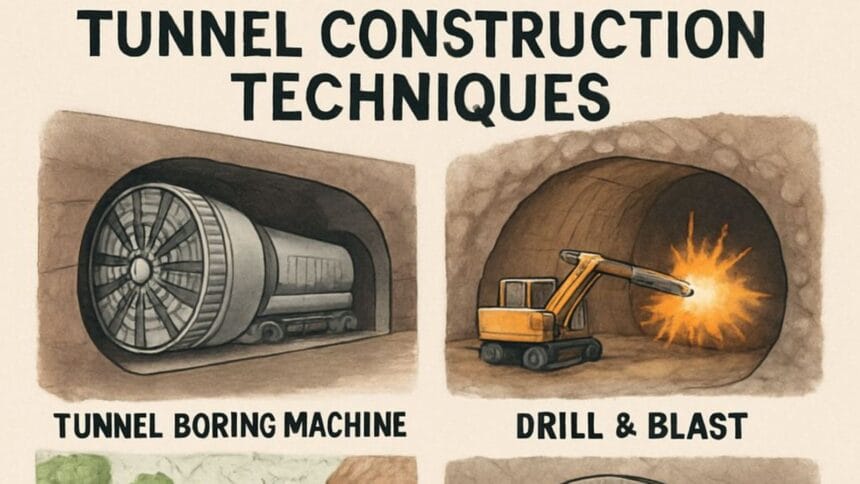

2. Bored Tunnel Construction
Overview: This method uses Tunnel Boring Machines (TBMs) to dig deep into the earth with minimal surface impact.
Best For: Long tunnels under cities, rivers, or mountains—especially where minimizing surface disturbance is critical.
Advantages:
- Precision and safety
- Minimal disruption above ground
- Automated process with real-time data monitoring
Limitations:
- High initial cost
- Complex machinery setup
Notable Projects: The Channel Tunnel (UK to France) and the Gotthard Base Tunnel (Switzerland) used advanced boring techniques.
3. New Austrian Tunneling Method (NATM)
Overview: Also known as the sequential excavation method, NATM involves incremental digging while using the surrounding rock for natural support.
Best For: Mountain regions or mixed ground conditions
Advantages:
- Adaptable to different geologies
- Cost-effective in difficult terrains
Limitations:
- Requires skilled labor
- Not suitable for high-traffic urban areas
Interesting Fact: NATM is heavily used in railway tunnel projects across Europe and Asia.
4. Immersed Tube Method
Overview: In this technique, prefabricated tunnel sections are floated to a site, sunk into a pre-dug trench in a water body, and then connected underwater.
Best For: Subaqueous tunnels like those under rivers or sea channels.
Advantages:
- Faster construction with prefabrication
- Ideal for shallow water crossings
Limitations:
- Environmental impact on marine ecosystems
- Complex underwater sealing
Examples: The Øresund Link between Denmark and Sweden combines a bridge and an immersed tube tunnel.
5. Pipe Jacking and Microtunneling
Overview: These trenchless technologies push pipes underground using hydraulic jacks from a launch shaft to a reception shaft, often guided remotely.
Best For: Utility tunnels and small-diameter pipelines in urban areas
Advantages:
- No disruption to surface traffic
- Safe and clean method
Limitations:
- Size constraints
- High initial equipment investment
Modern Applications: Frequently used for sewage and fiber-optic cable installations in cities.
Tunnel Support Systems
Beyond excavation, tunnel safety depends on proper support systems, including:
- Shotcrete (Sprayed Concrete): For immediate wall support
- Rock Bolts and Lattice Girders: Stabilize rock structures
- Segmental Linings: Precast concrete segments assembled inside TBMs
These systems prevent collapse, water ingress, and ensure long-term stability.
Environmental and Safety Considerations
Modern tunnel construction must comply with strict safety and environmental regulations:
- Ventilation Systems: To maintain air quality
- Fire Safety Protocols: Including escape routes and fireproof materials
- Seismic Design: Tunnels in earthquake zones require flexible and shock-absorbing features
- Noise and Dust Control: Especially crucial in urban environments
The Role of Technology in Tunnel Construction
Modern projects benefit from cutting-edge tech:
- 3D Ground Mapping: Helps engineers anticipate geological issues
- AI Monitoring Systems: Provide real-time data on pressure, temperature, and ground movement
- Robotic Inspections: Minimize human risk during maintenance
These tools make tunneling faster, safer, and more cost-efficient than ever before.
Challenges Faced in Tunnel Projects
Despite the progress, tunnel construction isn’t without challenges:
- Unexpected Geological Conditions: Can lead to delays or failures
- Water Ingress: Especially dangerous in below-sea-level tunnels
- Cost Overruns: Due to technical complexity
- Legal and Zoning Issues: Often delay approvals in urban zones
Careful planning, risk analysis, and contingency strategies are essential for success.
Future Trends in Tunnel Construction
The future is promising for tunnel engineering. Expect to see:
- Hyperloop Tunnels: For ultra-high-speed transport
- Green Tunnels: Designed with eco-friendly materials and carbon-neutral practices
- Smart Infrastructure Integration: Using IoT for tunnel maintenance and energy optimization
- Modular Tunneling: Using pre-built sections to speed up construction
As urban spaces get denser, underground infrastructure will become even more critical.
Conclusion
Tunnel construction techniques have come a long way from the days of manual digging. Today, engineers rely on sophisticated methods such as boring machines, pipe jacking, and immersed tubes to create safe and efficient underground passageways. Each method has its own strengths and best-use cases, which must be carefully considered based on location, budget, and purpose.
By staying informed about these techniques and embracing technological innovations, engineers and planners are not just digging holes—they are building the backbone of future cities.
