Building major infrastructure on soft, waterlogged soil has always been one of civil engineering’s toughest challenges. Coastal regions, reclaimed land, river deltas, and marine clay deposits are notorious for weak bearing capacity and long-term settlement. Without proper ground improvement, roads crack, embankments sink, and structures fail over time.
This is where Prefabricated Vertical Drains (PVD) quietly do the heavy lifting. Though simple in appearance, PVDs are one of the most effective and widely used techniques for accelerating soil consolidation, turning unstable ground into reliable foundations for highways, ports, airports, and even entire cities.
What Are Prefabricated Vertical Drains (PVD)?
Prefabricated Vertical Drains are thin, flexible drainage strips designed to remove excess pore water from soft, compressible soils. Each drain typically consists of:
- A plastic core that allows water to flow vertically
- A synthetic geotextile filter wrapped around the core to prevent soil intrusion

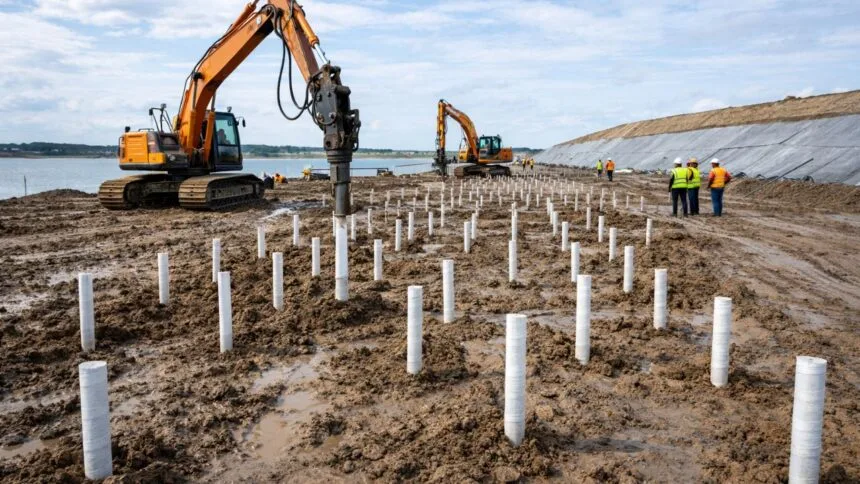

These drains are installed vertically into the ground at predetermined spacing and depths, creating artificial drainage paths that drastically shorten the distance water must travel to escape the soil.
PVDs are especially effective in clayey soils, where natural drainage is extremely slow.
Why Soft Soil Is a Problem for Construction
Soft soils, such as marine clay or peat, contain a high percentage of water trapped between soil particles. When loads from embankments, buildings, or roads are placed on such soils, several problems occur:
- Excess pore water pressure builds up
- Soil compresses slowly over time
- Long-term settlement causes structural damage
- Bearing capacity remains low for years
Without treatment, natural consolidation may take decades. Infrastructure projects simply cannot wait that long.
How Prefabricated Vertical Drains Work
The science behind PVD is straightforward but powerful.
Step 1: Drain Installation

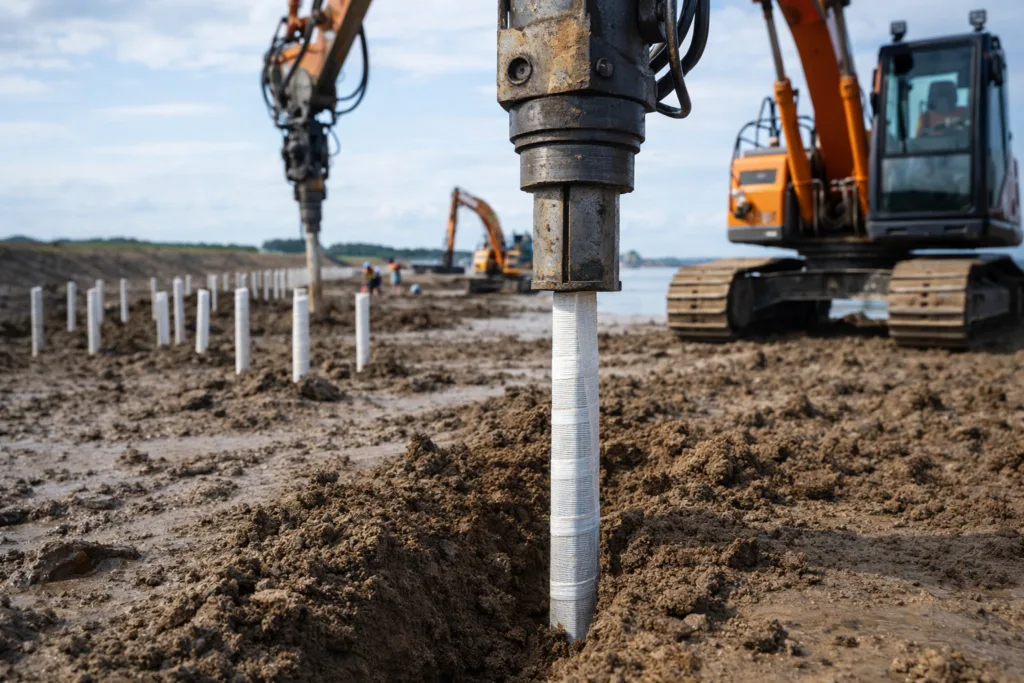

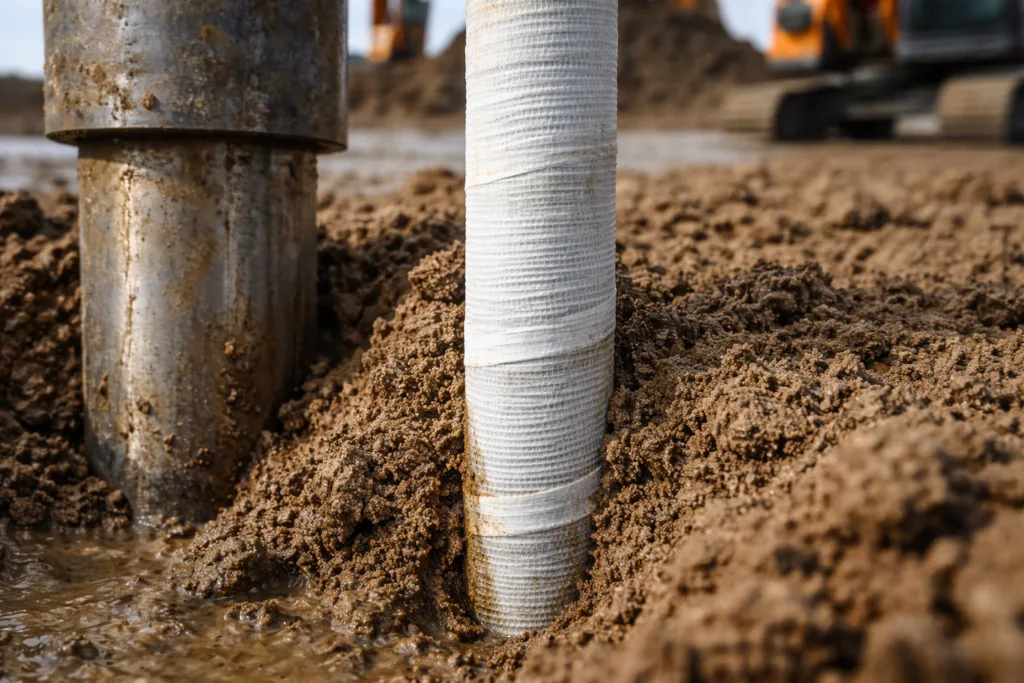

A steel mandrel pushes the PVD strip deep into the soil to the required depth. Once in position, the mandrel is withdrawn, leaving the drain embedded in the ground.
Step 2: Application of Surcharge Load
After installation, a surcharge load—usually earth fill—is placed on the ground surface.
Step 3: Accelerated Water Flow
As pressure increases, excess pore water flows horizontally toward the nearest vertical drain and then travels upward through the drain to the surface.
Step 4: Rapid Consolidation
As water escapes, pore pressure dissipates. Soil particles pack closer together, increasing density, strength, and stability.
This process reduces consolidation time from decades to months.
Key Benefits of Using PVD in Ground Improvement
1. Dramatically Reduced Settlement Time
PVDs can speed up soil consolidation by 10 to 20 times, allowing construction to proceed much faster.
2. Improved Bearing Capacity
As the soil consolidates, its load-carrying capacity increases, making it safe for heavy structures.
3. Cost-Effective Solution
Compared to deep soil replacement or piling, PVD installation is economical for large-area projects.
4. Proven and Reliable Technology
PVD systems have been used successfully for decades in major global infrastructure projects.
5. Minimal Environmental Impact
The technique avoids excavation and uses lightweight materials, making it environmentally friendly.
Where Prefabricated Vertical Drains Are Used
PVDs are particularly valuable in projects involving weak or reclaimed land.
Roads and Highways
Highway embankments built on soft ground require quick consolidation to prevent long-term settlement.
Ports and Harbors
Marine clay is common in coastal zones. PVDs enable stable construction of docks, container yards, and breakwaters.
Airports
Runways and taxiways demand strict settlement control. PVDs provide uniform consolidation across large areas.
Industrial Zones and Smart Cities
Many modern cities are built on reclaimed land. PVDs make large-scale urban development possible.
Railway Embankments
High-speed rail projects rely on PVDs to maintain track alignment and safety.
PVD vs Traditional Drainage Methods
| Feature | Prefabricated Vertical Drains | Sand Drains |
|---|---|---|
| Installation Speed | Very fast | Slower |
| Quality Control | High | Moderate |
| Cost Efficiency | Better | Higher cost |
| Installation Depth | Greater | Limited |
| Environmental Impact | Low | Higher |
Because of these advantages, PVDs have largely replaced sand drains in modern projects.
Installation Planning and Design Considerations
Successful PVD performance depends on proper design and execution.
Engineers consider:
- Soil type and compressibility
- Drain spacing and depth
- Surcharge load magnitude
- Construction schedule
- Expected settlement targets
Instrumentation such as settlement plates and piezometers are often used to monitor performance in real time.
Real-World Impact: Transforming Weak Ground into Usable Land
Some of the world’s largest infrastructure projects owe their success to PVD technology. Entire airports, industrial zones, and port cities have been built on soft soil that was once considered unsuitable for construction.
By accelerating consolidation, PVDs reduce risk, improve safety, and unlock land that would otherwise remain unusable.
Challenges and Limitations
While highly effective, PVDs are not a one-size-fits-all solution.
Potential challenges include:
- Smear effects during installation
- Need for accurate spacing and depth control
- Dependence on surcharge loading
- Not suitable for very coarse soils
Proper installation techniques and experienced contractors are essential.
The Future of PVD Technology
As infrastructure demands grow and land becomes scarcer, PVD systems continue to evolve. Advances include:
- Improved filter materials
- Higher discharge capacity cores
- Faster installation rigs
- Integration with vacuum consolidation systems
These innovations make PVDs even more effective and reliable.
Final Thoughts
Prefabricated Vertical Drains are one of the unsung heroes of modern infrastructure development. By accelerating soil consolidation, they transform weak, waterlogged ground into stable foundations capable of supporting roads, ports, airports, and cities.
Simple in design yet powerful in impact, PVD technology enables safer construction, faster project delivery, and smarter use of land. As urban development pushes into increasingly challenging environments, PVDs will remain a cornerstone of sustainable and resilient ground engineering.
