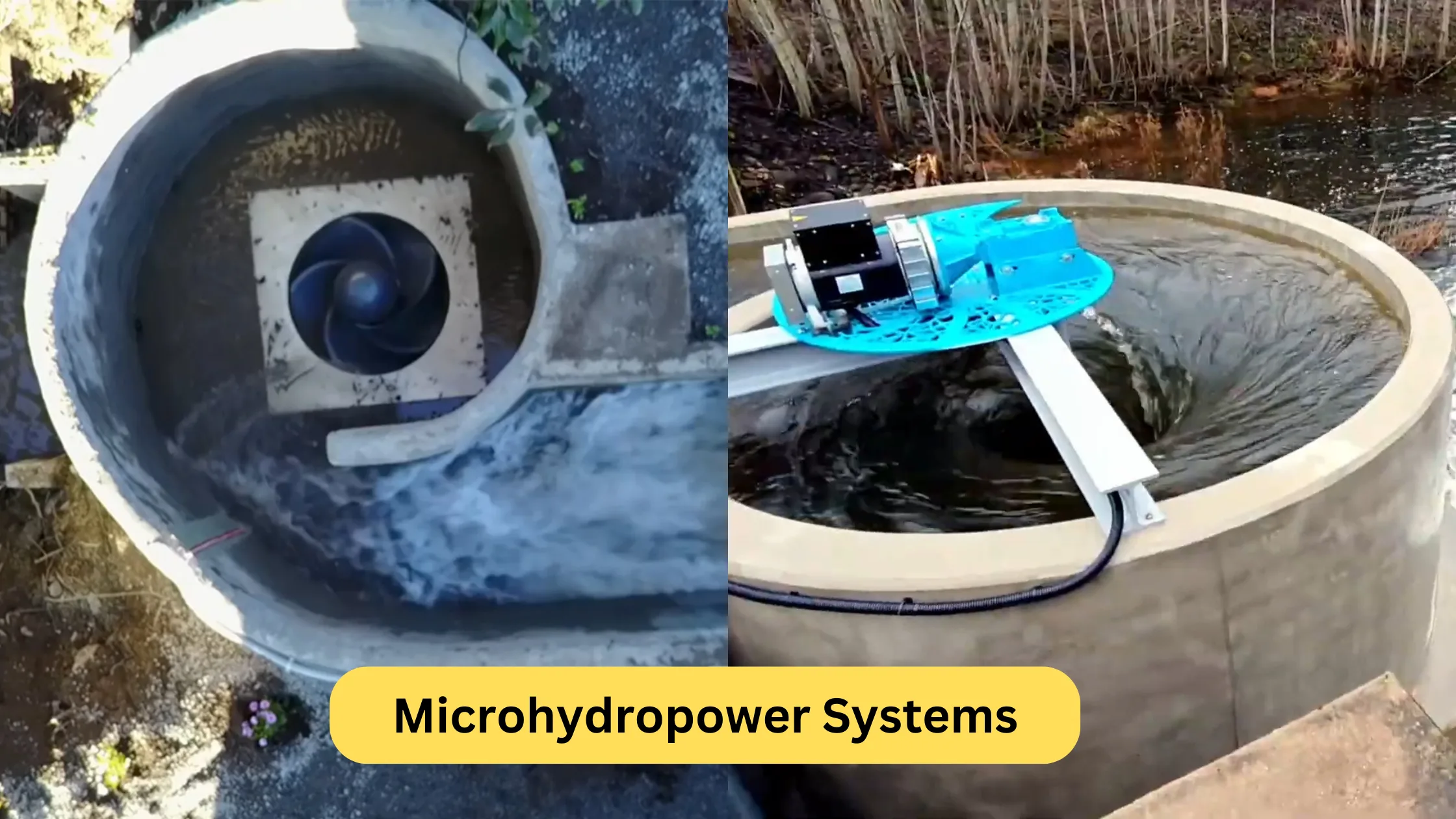

Generate Clean Energy and Save Big on Your Electric Bill with Microhydropower

Microhydropower One of the easiest and most reliable sources of renewable energy for your home.

You can think about installing a modest hydropower system on your land if there is water running through it in order to produce energy. Typically, microhydropower plants may produce up to 100 kW of energy. Microhydropower systems include the majority of hydropower systems utilized by small company owners and homeowners, including farmers and ranchers. Nonetheless, a 10-kilowatt microhydropower system may often supply sufficient electricity for a sizable house, a little resort, or a hobby farm.

In order to turn the energy of flowing water into rotational energy, which is then transformed into electricity, a microhydropower system requires a turbine, pump, or waterwheel.

For further details, see our article on designing a microhydropower system.

Read More: The Future of Next level Underwater Robotic

The Operation of a Microhydropower System

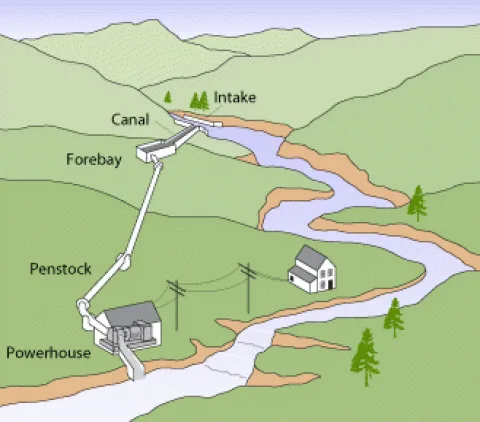

Components of a Microhydropower System

The fundamental parts of run-of-the-river microhydropower systems are as follows:

  • Water conveyance: a pressurized pipeline (penstock), canal, or pipeline that transports water
  • The energy of flowing water is converted into rotational energy by a turbine, pump, or waterwheel.
  • Generator or Alternator — generates power from rotational energy
  • Regulator: manages the power plant
  • Electricity is delivered by wiring.

Turbines and generators that are marketed commercially are often offered as a set. For do-it-yourself systems, it’s important to carefully match the turbine’s horsepower and speed to the generator.

Inverters are also often used in systems to convert the system’s low-voltage direct current (DC) power into 120 or 240 volts of alternating current (AC). (As an alternative, you may purchase DC-powered household appliances.)

Numerous components of a microhydropower system’s balance depend on whether it is grid-connected or stand-alone.

For instance, some standalone systems store the power they produce in batteries. Batteries might not always be an option for microhydropower systems, though, as hydropower supplies are often more seasonal than wind or solar resources. As low-voltage electricity is difficult to transmit over long distances, if batteries are used, they should be placed as near to the turbine as feasible.

Types of Turbines

Impulse Generators

The most popular application for impulse turbines, which have the simplest design, is in high-head microhydro systems. The turbine wheel, also known as the runner, is propelled by the water’s velocity. The Pelton wheel and the Turgo wheel are the two most popular varieties of impulse turbines.

  • Pelton wheel: this energy-generating device harnesses the idea of jet force. A pressurized pipeline with a narrow nozzle at one end is filled with water via a funnel. The double-cupped buckets fastened to the wheel are hit by the jet of water that shoots from the nozzle. The wheel revolves at high efficiency rates of 70–90% due to the force created by the jet spray’s impact on the curved buckets. Pelton wheel turbines come in a range of sizes and perform best in environments with high head and low flow.
  • The Turgo Impulse Wheel is an improved Pelton model. The notion of jet spray is the same, but the Turgo jet—which is half as large as the Pelton jet—is slanted to reach three buckets simultaneously. The Turgo wheel travels twice as quickly as a consequence. It also requires fewer or no gears, is less bulky, and is well-known for operating without issue. The Turgo needs a medium or high head in order to function in low flow situations.
  • A drop-in-the-creek turbine known as the Jack Rabbit turbine can produce electricity from a stream with as little as 13 inches of water and no head. The Jack Rabbit can produce up to 100 watts, thus depending on your site, the average daily production is 1.5 to 2.4 kilowatt-hours. Known as the Aquair UW Submersible Hydro Generator at times.
